Ordering Information¶

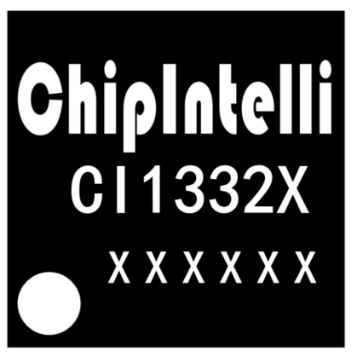

The package marking for CI13322 is shown in the figure below.
Line 1 Chip logo;
Line 2 Chip model;
Line 3 Production lot number;
Dot in the lower left corner marks pin 1.

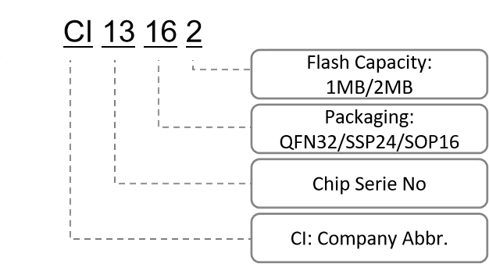

Chip model naming rules (example: CI13162):
Ordering information is as follows:
Table F-1 Chip Ordering Information
| Model | Flash Size | Package | Basic Package | Tape & Reel Qty | Standard Packing |
Standard Packing Qty |
|---|---|---|---|---|---|---|
| CI13322 | 2MByte | QFN32 | Tape & Reel | 4000PCS | Box | 8000pcs |
