Ordering Information¶

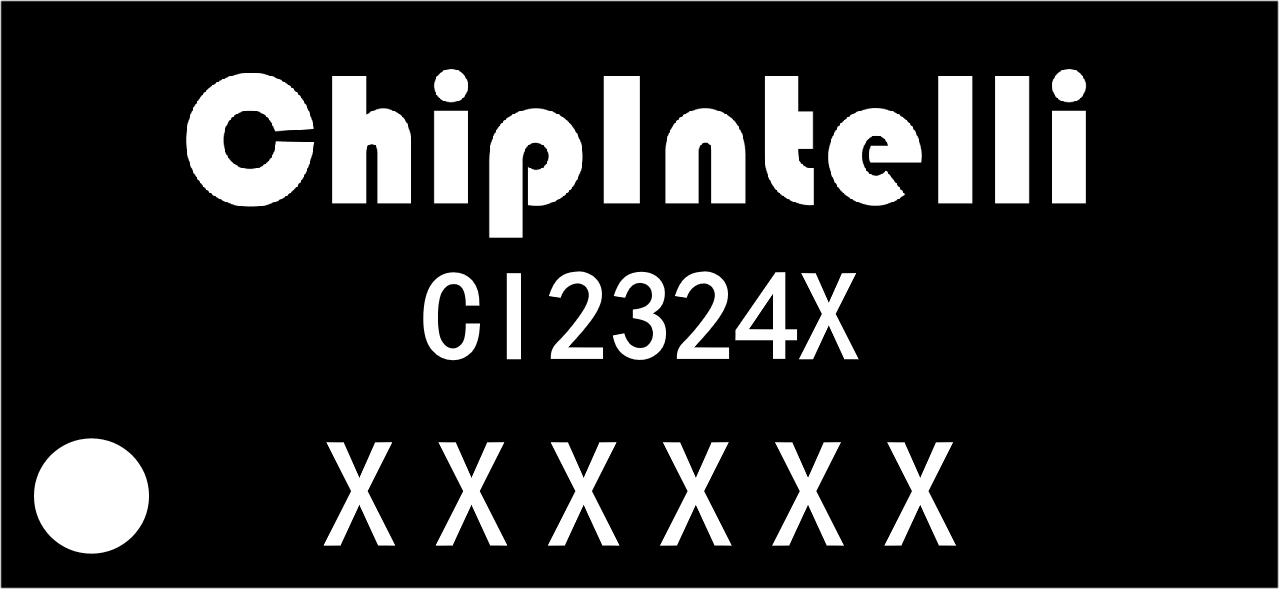

The CI2324X chip package marking is shown in the figure below.
Line 1 Chip logo;
Line 2 Chip model;
Line 3 Production lot number;
Dot in the lower left corner marks pin 1.

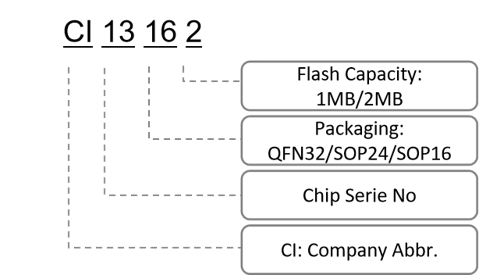

Chip model naming rules (example: CI13162):
Ordering information is as follows:
Table F-1 Ordering Information
| Model | Flash Size | Package | Basic Package | Tube Qty | Standard Packing |
Std Pack Qty |
|---|---|---|---|---|---|---|
| CI23242 | 2MByte | SSOP24 | Tube | 50pcs | Box | 10000pcs 200 Tubes/Box |
