Package Information

The figure below shows the package outline drawing of the chip. Please refer to the drawing for specific dimensional parameters.

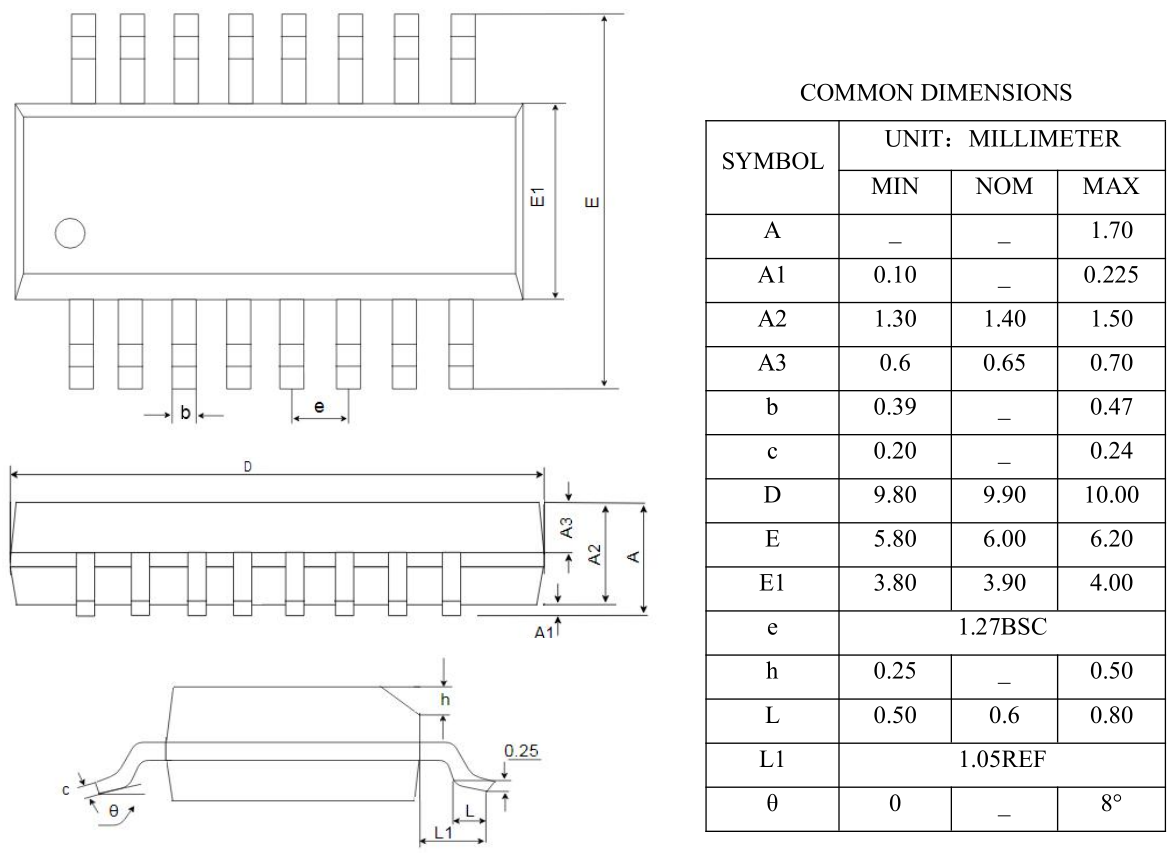

Figure P-1 Chip Package Outline Dimensions
