Ordering Information

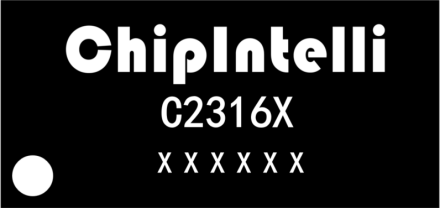

The marking on the CI2316X chip package is shown below.
Line 1 Chip logo;
Line 2 Chip model;
Line 3 Production lot number;
Dot in the lower left corner marks pin 1.

Chip Package Outline

Chip model naming rules (example: CI13162):

Chip Model Naming Rules

Ordering information is as follows:

Table F-1 Ordering Information

Part Number Flash Size Package Basic Package Tray Qty Standard
Packing		 Standard
Packing Qty
CI23161 1MByte SOP16 Tube 50pcs Box 10000pcs
(200 tubes/box)
CI23162 2MByte SOP16 Tube 50pcs Box 10000pcs
(200 tubes/box)
