Chip Overview

CI1316X is a new generation of high-performance neural network intelligent voice chip developed by Chipintelli. It integrates Chipintelli’s self-developed Brain Neural Processing Unit (BNPU) V3.5 and CPU core, with a system frequency of up to 210MHz. It features built-in 288KByte SRAM, integrated PMU power management unit, RC oscillator, single-channel high-performance low-power Audio Codec, and multiple peripheral control interfaces such as UART, I2C, PWM, and GPIO. The CI1316X chip requires only a few peripheral components like resistors and capacitors to implement various intelligent voice product hardware solutions, offering excellent cost performance.

The CI1316X adopts industrial-grade design standards with excellent environmental reliability. It operates within a temperature range of -40°C to +85°C, complies with MSL3 moisture sensitivity level, meets the 4KV contact discharge test standard of IEC 61000-4-2, and adheres to RoHS and REACH environmental protection standards.

CI1316X utilizes Chipintelli’s new generation BNPU technology, which supports neural networks such as DNN/TDNN/RNN/CNN and parallel vector operations, enabling high-performance speech recognition, noise reduction, and robust environmental noise suppression. The CI1316X solution also supports multiple global languages including Chinese, English, and Japanese, making it widely applicable in various fields such as home appliances, lighting, toys, wearable devices, industrial, and automotive products for voice interaction, control, and intelligent voice solutions.

Documentation

Please click ☞CI13161 Datasheet ☞CI13162 Datasheet to download the complete chip datasheets.

Table G-1 Chip Information

Chip Model FLASH Capacity RAM Capacity Package Information
CI13161 1MByte 288KByte SOP16(9.9mm*6.0mm*1.7mm)
CI13162 2MByte 288KByte SOP16(9.9mm*6.0mm*1.7mm)

Application Fields

CI1316X can be applied in the following product areas:

  • Smart Home Appliances
  • Smart Toys
  • Smart Lighting
  • Smart Wearables

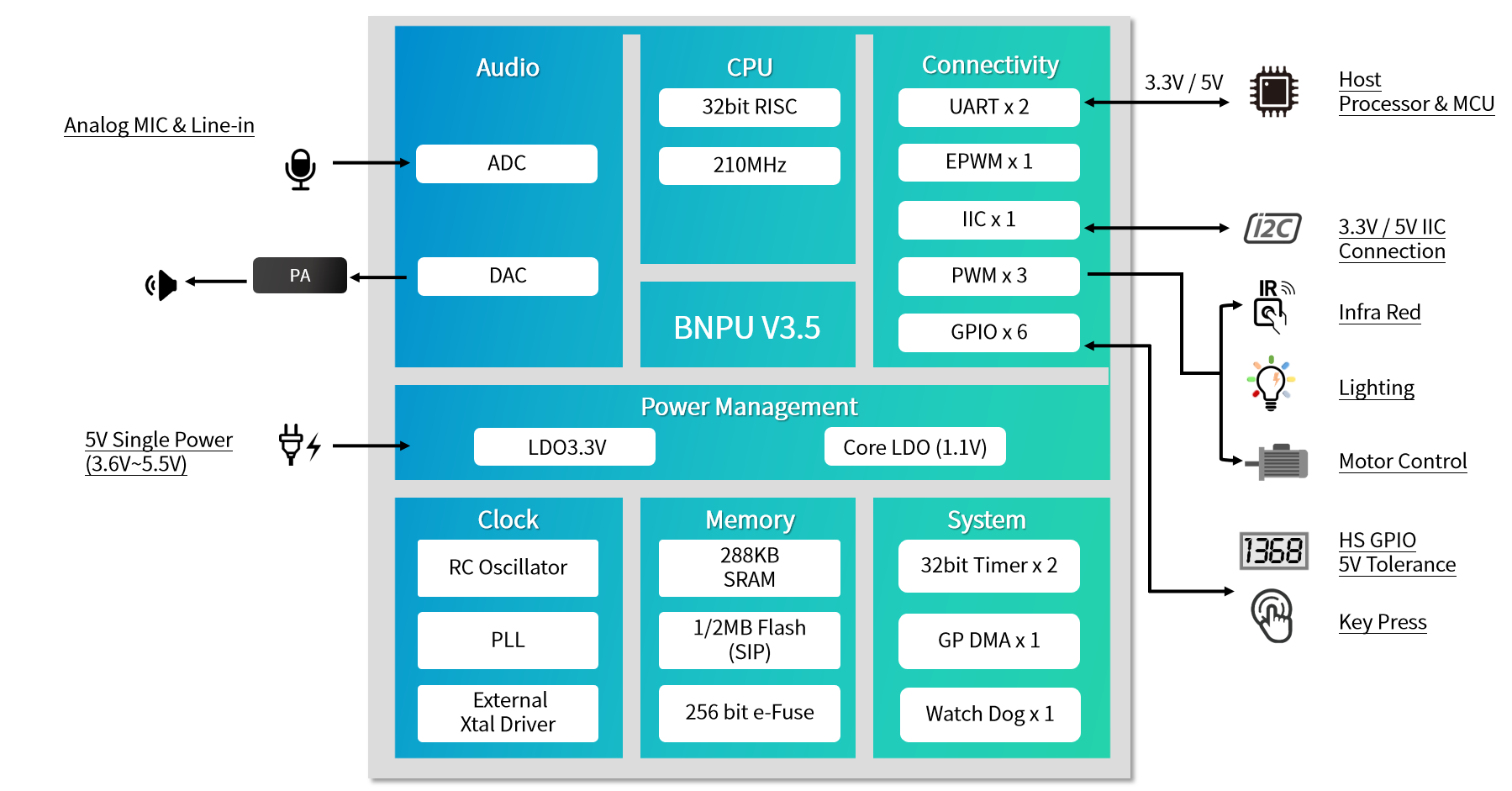

CI13161&CI13162 Chip Application Block Diagram

Figure G-1 CI1316X Chip Application Block Diagram

Chip Key Features

  • Brain Neural Processing Unit (BNPU) V3.5
    • Utilizes Chipintelli’s new generation BNPU hardware technology, supporting DNN/TDNN/RNN/CNN neural networks and parallel vector operations, enabling high-performance speech recognition and noise reduction.
  • CPU
    • 32-bit high-performance CPU with operating frequency up to 210MHz
    • 32-bit single-cycle multiplier with DSP extension acceleration
  • Memory
    • Built-in 288KB SRAM
    • Built-in 256-bit eFuse
    • Built-in 1MB/2MB Flash
  • Audio Interface
    • Built-in high-performance, low-power Audio Codec module supporting single-channel ADC sampling and single-channel DAC playback
    • Supports Automatic Level Control (ALC)
    • Supports sampling rates of 8kHz/16kHz/24kHz/32kHz/44.1kHz/48kHz
  • Power Management Unit (PMU)
    • Wide power supply voltage range: 3.6V to 5.5V
    • Built-in 2-channel high-performance LDO circuits, eliminating the need for external power chips; the application solution requires only a few peripheral passive components
  • Clock
    • Built-in RC oscillator
    • Supports external crystal input
  • Peripherals and Timers
    • 2 UART interfaces with communication rates up to 3M baud
    • 1 I2C interface for external I2C device expansion
    • 3 PWM interfaces for direct driving of lighting and motor applications
    • Built-in 2 sets of 32-bit timers
    • Built-in 1 independent watchdog (IWDG)
  • GPIO
    • 6 GPIO ports that can be used as main control IC applications
    • Each GPIO port supports configurable interrupt function and pull-up/down states
    • 5 GPIOs can directly support 5V level communication with external 5V pull-up resistors
  • Software Development Support
    • Provides complete software development kit, application solution examples, and online firmware development through the voice development platform. For details, please visit: https://aiplatform.Chipintelli.com
  • Firmware Programming and Protection
    • Supports UART upgrade and firmware protection
  • ESD Performance
    • Features internal ESD enhancement design, passing 4KV contact discharge test
  • RoHS and REACH Compliance
    • Uses environmentally friendly materials, compliant with RoHS and REACH standards
  • Package and Operating Temperature Range
    • Package: SOP16, dimensions: 9.9mm (L) × 6.0mm (W) × 1.7mm (H)
    • Operating temperature range: -40°C to +85°C
