CI13XX Low Power Solution Description

Overview

The CI13XX chip series supports low-power solutions, which require coordinated efforts from both hardware and software aspects. This document details the implementation methods from both hardware and software perspectives.

---

Low Power Hardware Solution

The hardware solution for the CI13XX series chips involves replacing the internal LDO (Low Dropout Regulator) power supply with a more efficient DCDC power supply. The DCDC power supply can achieve over 95% efficiency, compared to only about 30% efficiency for LDOs, thus effectively reducing power consumption. The DCDC power supply uses 5V input and 1.1V output connected to the VDD11 pin of the chip.

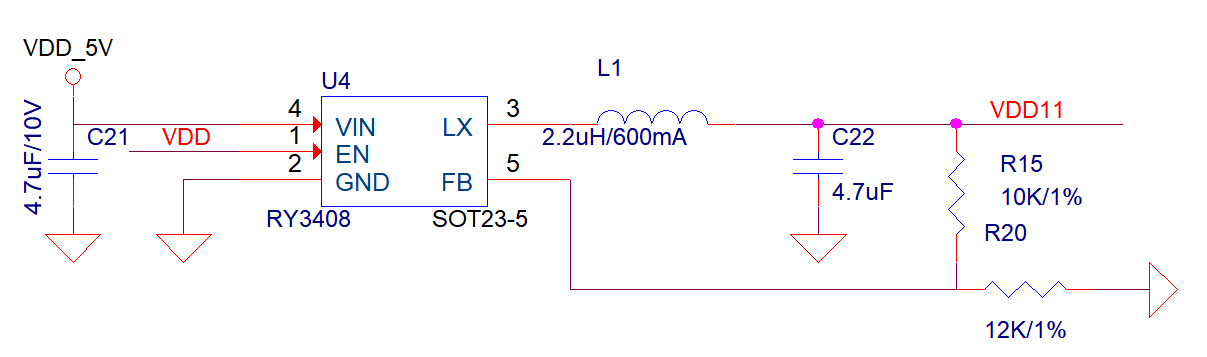

Reference diagram for the low-power hardware solution:

Figure 1 1.1V External DCDC Power Supply

Low Power Software Solution

For CI13XX series chips using DCDC power supply to reduce power consumption, the internal 1.1V LDO needs to be disabled in software. The configuration method is as follows:

#define USE_INNER_LDO3                      0

Set the macro USE_INNER_LDO3 to 0 in the SDK to disable the internal 1.1V LDO. Note: After making changes, clean and rebuild the project.

The low-power solution for CI13XX series chips also includes reducing the system’s main frequency. The configuration method is as follows:

define MAIN_FREQUENCY          180000000    //Main frequency in Hertz (Hz)

You can appropriately reduce the macro definition value of the system’s main frequency. Lower main frequency results in lower power consumption; however, if the main frequency is set too low, it may affect recognition performance, such as slower response time and reduced recognition accuracy. The impact varies between different recognition models, so actual testing is required to determine the optimal value for specific projects. Note: After making changes, clean and rebuild the project.
